Summary#
The Klein Tools NCVT1P is a pocket-sized non-contact voltage tester that detects 50-1000V AC with dual LED indicators and an audible alarm. CAT IV 1000V rated, drop-proof, and battery-included, it's the go-to safety check for electricians and DIYers who need to confirm a wire is live before they touch it.
At a Glance#
Product : Klein Tools NCVT1P Non-Contact Voltage Tester
Brand : Klein Tools
Best For : Electricians and home DIYers who need a fast, reliable live-wire check before working on outlets, switches, or fixtures
Form Factor : Pocket pen, 5.5 in long, 0.8 oz, runs on 2x AAA
Buy Now : View on Amazon
Key Highlights:
- Wide 50-1000V AC range covers nearly every household and commercial circuit you'll meet
- Dual green/red LEDs plus an audible tone confirm voltage even at arm's length
- CAT IV 1000V safety rating built for use right at the service panel
- Pocket clip and feather weight mean it's always on you when you need it
- Ships with batteries installed, so it works the moment it arrives
Who Should Buy This#
The NCVT1P hits a sweet spot for anyone who works near electricity and values a no-fuss safety check that just works. It delivers a broad detection range, clear dual-mode alerts, and a serious CAT IV rating that competing pen testers often skip at this price point.
Perfect for:
- Working electricians who need a rugged daily-carry tester that survives drops off a ladder onto concrete
- Home DIYers who want to confirm a circuit is hot before swapping an outlet or light fixture
- Landlords and handymen who troubleshoot dead receptacles and tripped circuits across multiple properties
- New homeowners who want one trustworthy safety tool in the drawer before tackling small electrical jobs
Why Non-Contact Testing Matters#
A non-contact tester lets you check for live voltage without touching bare conductors. You hold the tip near an outlet slot, a wire, or a breaker, and the NCVT1P reads the electromagnetic field radiating from energized AC lines.
That means you can verify a wire is hot through its insulation, before you ever pick up a screwdriver. For most quick safety checks, that's faster and safer than probing terminals with a contact meter.
Key Features#
Wide 50-1000V AC Detection Range#
The NCVT1P senses standard voltage from 50 to 1000 volts AC across a 50-500 Hz frequency band. That single span covers low-voltage lighting circuits, standard 120V and 240V household wiring, and heavier 480V commercial feeds.
In practice, one tester handles the outlet behind your couch and the panel feeding the whole house. You aren't juggling separate tools for residential and commercial jobs.
Dual LED and Audible Alarms#
A bright green LED confirms the unit is powered on the moment you press the button. When the tip nears live voltage, a high-intensity red LED lights up and an audible tone sounds at the same time.
That two-channel feedback matters in the real world. In a bright attic where you can barely see the LED, the beep still warns you. In a noisy job site where the tone gets lost, the red light is unmistakable.
CAT IV 1000V Safety Rating#
The NCVT1P carries a CAT IV 1000V rating, the highest measurement category. CAT IV covers the origin of the installation, the service entrance, and the utility connection where transient energy spikes are largest.
Many budget pen testers only reach CAT III or skip the rating entirely. With CAT IV, you can use the NCVT1P safely from the wall outlet all the way back to the main panel.
Built to Survive the Job Site#
Klein rates the polymer body for a 6.6-foot (2 m) drop onto concrete. That's roughly the height it falls from a tool belt or the top of a step ladder.
The pocket clip keeps it secured in a shirt or pouch, and at 0.8 ounces you forget it's there until you reach for it. An auto power-off shuts the tester down after idle time to stretch the life of the two included AAA batteries.
Design & Build Quality#

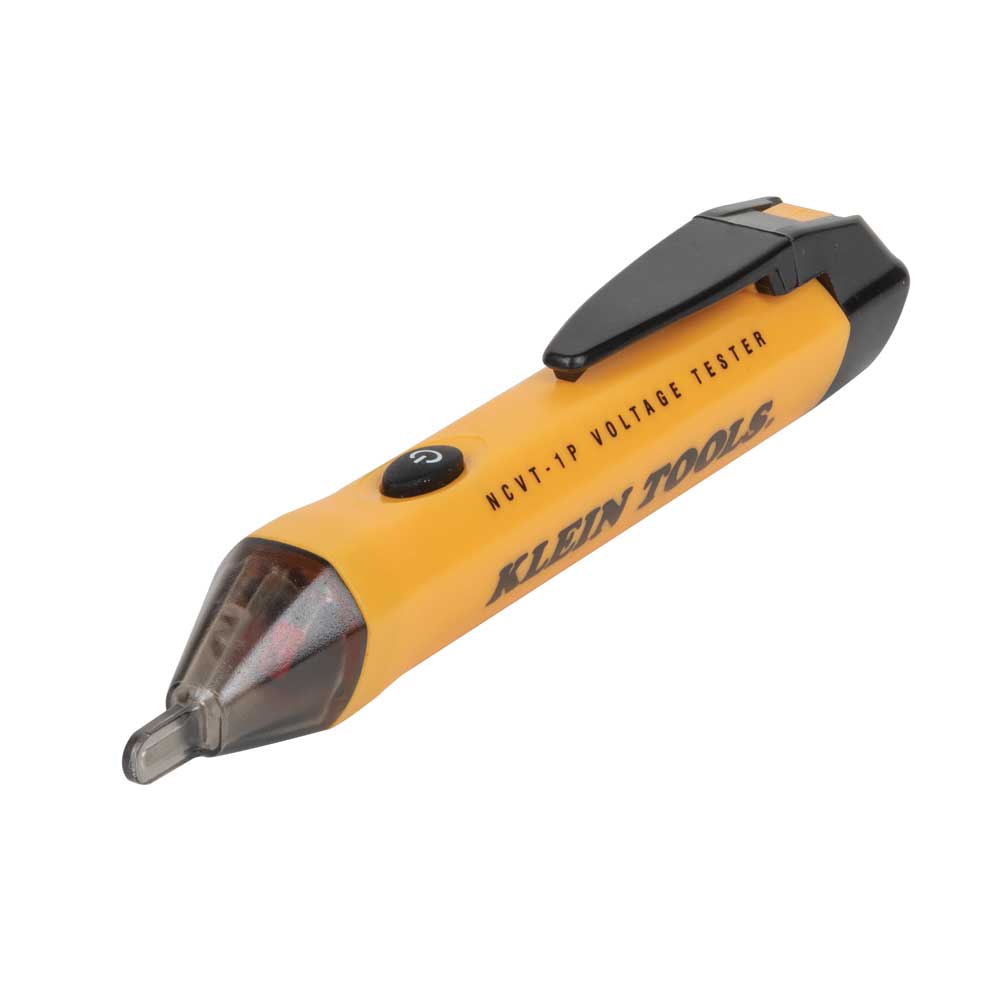

The NCVT1P uses Klein's familiar high-visibility yellow-and-black polymer shell, so it's easy to spot in a cluttered toolbox or dim crawlspace. The body measures 5.5 inches long, 1 inch wide, and just 0.72 inches tall, slim enough to ride in a shirt pocket like a pen.
A single recessed power button sits mid-body to prevent accidental activation, and the clear sensor tip lets you see the LED glow from any angle. The integrated metal pocket clip doubles as a way to hang it on a pouch loop. Everything about the form factor says "carry me everywhere," which is exactly what a safety tester should do.
Check current availability: View on Amazon
Technical Specifications#
Voltage Range : 50-1000V AC
Frequency Range : 50-500 Hz
Safety Rating : CAT IV 1000V, Pollution Degree 2
Indicators : Green power LED, red voltage-detected LED, audible tone
Battery : 2x AAA 1.5V (included)
Power Management : Auto power-off to extend battery life
Drop Protection : 6.6 ft (2 m) onto concrete
Length : 5.5 in (14 cm)
Width : 1 in (2.5 cm)
Height : 0.72 in (1.8 cm)
Weight : 0.8 oz (23 g)
Body : High-visibility polymer with pocket clip
Pros & Cons#
Pros:
- Detects a wide 50-1000V AC range covering most household and commercial wiring
- Dual green/red LED plus audible tone gives clear confirmation in noisy or bright environments
- CAT IV 1000V safety rating built for use at the service entrance and beyond
- Pocket clip and 0.8 oz weight make it effortless to carry every day
- Auto power-off preserves the included AAA batteries
- Survives 6.6-foot drops onto concrete thanks to a tough polymer body
Cons:
- Not recommended for tamper-resistant outlets; step up to the NCVT-2P or NCVT-3P for those
- No low-voltage mode for 12-48V signaling, thermostat, or doorbell circuits
- Non-contact testing can confirm voltage is present but cannot prove a circuit is truly dead like a contact tester
- No waterproof or dustproof rating, unlike the pricier NCVT1XT
Final Verdict#
Buy it. The Klein Tools NCVT1P is a dependable, pocket-friendly first line of defense against live wires that earns its spot in any toolbox, and its CAT IV rating outclasses most pen testers in its range.
Our recommendation: Keep one in your tool pouch and a second in the kitchen junk drawer so a safety check is never more than a reach away. Grab it here: View on Amazon
